Harley-Davidson FLHTCUSE7 CVO Ultra Classic Electra Glide, 2012, Motorcycle Accident Lawyer

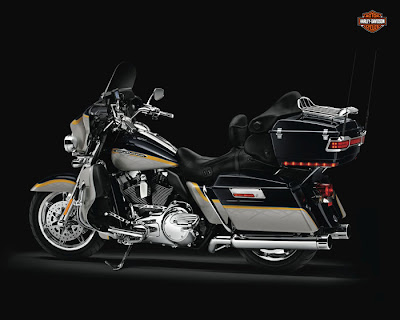

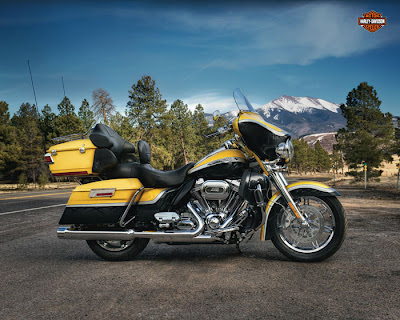

 Harley-Davidson FLHTCUSE7 CVO Ultra Classic Electra Glide, 2012
USA Specifications
US MSRP Price: $37,249 USD
Length 98.8 in. (2510 mm)
Overall Width 38.4 in. (975 mm)
Overall Height 57.0 in. (1448 mm)
Seat Height:
- Laden2 27.8 in. (706 mm)
- Unladen 29.8 in. (757 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson® Series, bias blackwall front and rear):
- Front – D408 130/80B17 65H
- Rear – D407 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.4 qts. (1.3 L)
- As Shipped 889 lbs. (404.1 kg)
- In Running Order 927 lbs. (421.4 kg)
- Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
- Gross Axle Weight Rating:
- Front 500 lbs. (226.8 kg)
- Rear 927 lbs. (420.5 kg)
Engine Air-cooled, Twin Cam 110
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1802 cc)
Compression Ratio 9.15:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Ventilator intake with chrome cover, fiberglass media, washable exposed element with rain sock
Lubrication System Pressurized, dry-sump
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Hydraulically actuated, 9-plate wet with high performance spring
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
- 1st 9.593
- 2nd 6.65
- 3rd 4.938
- 4th 4
- 5th 3.407
- 6th 2.875
Frame Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, with blow-by valve
Rear Shocks Air-adjustable
Wheels4: Mirror Chrome Chisel Custom Wheels
- Front 17 in. x 3 in. (432 mm x 76 mm)
- Rear 16 in. x 5 in. (406 mm x 127 mm)
- Caliper Type 32 mm, 4-piston fixed front and rear
- Rotor Type (diameter x width): Dual floating rotors (front), fixed rotor (rear)
- Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
- Rear 11.81 in. x .28 in. (300 mm x 7 mm)
- Anti-lock Braking System: Standard
Suspension Travel:
- Front Wheel 4.6 in. (117 mm)
- Rear Wheel 3 in. (76 mm)
Engine Torque5 (per J1349):
- North America 118 ft. lbs. @ 3750 RPM (159.9844 Nm @ 3750 RPM)
Lean Angle (per J1168):
- Right 33°
- Left 31°
Fuel Economy6 (EPA urban/highway test) 41 mpg (5.7 L/100 km)
Custom Colors
- Electric Orange/Black Diamond with Big City Lights graphics
- Crystal Citron/Diamond Dust with Big City Lights graphics
- Wicked Sapphire/Stardust Silver with Big City Lights graphics

Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.4 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
- Headlamp (dual bulb halogen) 55-watt low beam, 120-watt high beam
- Tail/Stop Lights 8W/28W
- Turn Signal Lights 28W self-canceling
- Indicator Lamps: High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system7, 6-speed, low fuel warning, ABS
